SKU: PM1H0000RS Primacy Simplex Expert Fire Red Printer

The Primacy printer is extremely fast, powerful and efficient. Using advanced encoding technologies, this desktop printer is the best solution for issuing personalized cards, from the most simple to the most secure. Primacy is available in single and dual-sided versions and is the ideal choice for printing and encoding cards printing and encoding cards in medium and large runs.

• Single-sided or dual-sided printing module
• Edge-to-edge printing
• Color dye sublimation, monochrome thermal transfer
• 300 dpi print head (11.8 dots/mm)
• 16 million colors
• 16 MB memory (RAM)

• Single side:
• Color (YMCKO): 190-225 cards/hour
• Monochrome: 600-850 cards/hour
• Dual side:
• Color (YMCKO-K): 140 cards/hour

• Colors available: fire red & brilliant blue
• Upgrade kit for dual-sided printing
• USB encoding over IP through additional USB Net Server module, upon request
• Locking system to prevent access to the printer and consumables (cards and ribbons)
• Wireless range: wireless connection 802.11b/g

• Available modules:
Magnetic stripe encoder ISO 7811 / JIS2 Smart contact station ISO 7816 Smart encoding unit Contactless encoding unit
• Internal USB or IP connections
• Encoding options can be combined
• Factory ordered or upgraded on-site

• USB 1.1 (compatible 3.0)
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
• 802.11b/g wireless connection on the Wireless range

• Support for Kensington security lock
• Data encryption for magnetic encoding

• Printer LEDs
• Graphical notifications from the printer2: cleaning alerts, empty/low level ribbon alert, etc.

• Arial, Arial bold
• Barcode: Code 39, Code 128, EAN 13, 2/5 interleaved

• Feeder capacity: 100 cards (0.76 mm 30 mil)
• Output hopper capacity: 100 cards (0.76 mm 30 mil)
• Reject tray capacity: 30 cards (0.76 mm 30 mil)
• Card thickness: 0.25 to 1.25 mm (10 to 50 mil), gauge adjustment (0.25 mm / 10 mil only for monochrome printing)
• Card types:
• PVC cards
• Composite PVC cards
• PET cards
• Recycled PET cards
• ABS cards1
• Special varnished cards1
• Card format: ISO CR80-ISO 7810 (53.98 mm x 85.60 mm)

• To maximise the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust ribbons.

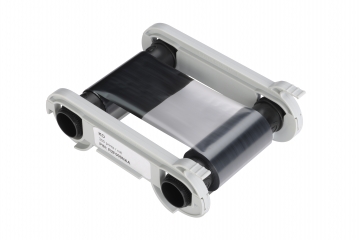

• Ribbon capacity:
• YMCKO: 300 prints/roll
• YMCKO-K: 200 prints/roll
• YMCKO: 400 prints/roll
• KO: 600 prints/rol
• Black monochrome ribbon: 2000 prints/roll 3
• Other monochrome ribbons: 1000 prints/roll
• Hologram varnish: 400 prints/roll
• Automatic identification and setting
• Delivered in a drop-in cassette for easy handling
• Ribbon saver for monochrome printing

• Delivered with Evolis Premium Suite for Windows:
• Printer driver
• Evolis Print Center for printer administration and settings
• Evolis Printer Manager for graphical notification
• 24/7 online support
• Compatible with Windows: XP SP3 32/64, Vista 32/64, W7 32/64, W8 32/64
• Delivered with eMedia CS Card Designer (30-day free trial to be downloaded from www.mediasoft.fr)
• Delivered with a driver for Mac OS X (from 10.5 onwards)
• Linux OS upon request

• Standby, sleep modes & reduced energy consumption
• CE, FCC, IEC, VCCI, CCC, KCC
• ErP 2009/125/CE
• ENERGY STAR
• RoHS

• Power supply: 100-240 Volts AC, 50-60 Hz, 1.8 A
• Printer: 24 Volts DC, 3 A

• Min/max operating temperature: 15/ 30C (59/ 86F)
• Humidity: 20% to 70% non-condensing
• Min/max storage temperature:5/+70C(23/158F)
• Storage humidity: 20% to 70% non-condensing
• Operating ventilation: open air

• Sound pressure in assistant positions LpAm (color mode YMCKO)
• When operating: 48 dB (A)
• In sleep mode: background noise level

• Printer
• CD-ROM with printer driver, user manuals
• Cleaning kit
• Reject tray
• USB cable
• Power supply and cord

• Size (H x W x D): 247 x 205 x 381 mm (9.72 x 8.07 x 14.99)
• With reject tray: 247 x 205 x 481 mm (9.72 x 8.07 x 18.93)
• Weight: 4.02 kg (8.86 lbs)

• 3-year warranty (printer and print head)5
• Warranty extension available as an option
